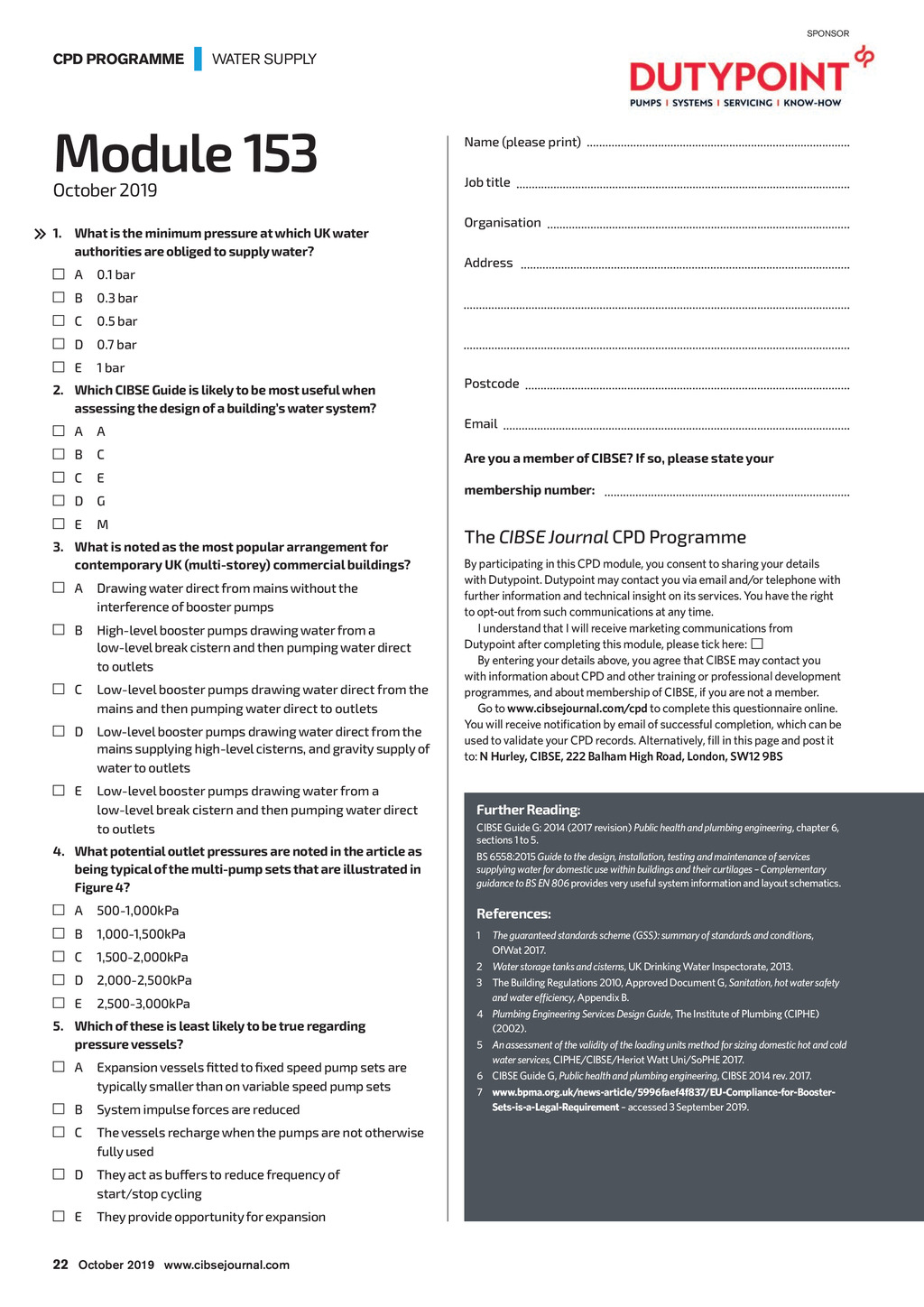

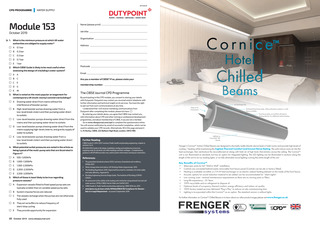

SPONSOR CPD PROGRAMME | WATER SUPPLY Module 153 October 2019 1. What is the minimum pressure at which UK water authorities are obliged to supply water? A 0.1 bar B 0.3 bar C 0.5 bar D 0.7 bar E 1 bar 2. Which CIBSE Guide is likely to be most useful when assessing the design of a buildings water system? A A B C C E D G E M 3. What is noted as the most popular arrangement for contemporary UK (multi-storey) commercial buildings? A Drawing water direct from mains without the interference of booster pumps B High-level booster pumps drawing water from a low-level break cistern and then pumping water direct to outlets C Low-level booster pumps drawing water direct from the mains and then pumping water direct to outlets D Low-level booster pumps drawing water direct from the mains supplying high-level cisterns, and gravity supply of water to outlets E Low-level booster pumps drawing water from a low-level break cistern and then pumping water direct to outlets 4. What potential outlet pressures are noted in the article as being typical of the multi-pump sets that are illustrated in Figure 4? Name (please print) Job title Organisation Address Postcode Email Are you a member of CIBSE? If so, please state your membership number: The CIBSE Journal CPD Programme By participating in this CPD module, you consent to sharing your details with Dutypoint. Dutypoint may contact you via email and/or telephone with further information and technical insight on its services. You have the right to opt-out from such communications at any time. I understand that I will receive marketing communications from Dutypoint after completing this module, please tick here: By entering your details above, you agree that CIBSE may contact you with information about CPD and other training or professional development programmes, and about membership of CIBSE, if you are not a member. Go to www.cibsejournal.com/cpd to complete this questionnaire online. You will receive notification by email of successful completion, which can be used to validate your CPD records. Alternatively, fill in this page and post it to: N Hurley, CIBSE, 222 Balham High Road, London, SW12 9BS Further Reading: CIBSE Guide G: 2014 (2017 revision) Public health and plumbing engineering, chapter 6, sections 1 to 5. BS 6558:2015 Guide to the design, installation, testing and maintenance of services supplying water for domestic use within buildings and their curtilages Complementary guidance to BS EN 806 provides very useful system information and layout schematics. A 500-1,000kPa References: B 1,000-1,500kPa 1 C 1,500-2,000kPa D 2,000-2,500kPa E 2,500-3,000kPa 5. Which of these is least likely to be true regarding pressure vessels? A Expansion vessels fitted to fixed speed pump sets are typically smaller than on variable speed pump sets B System impulse forces are reduced C The vessels recharge when the pumps are not otherwise fully used D They act as buffers to reduce frequency of start/stop cycling E They provide opportunity for expansion 2 3 4 5 6 7 The guaranteed standards scheme (GSS): summary of standards and conditions, OfWat 2017. Water storage tanks and cisterns, UK Drinking Water Inspectorate, 2013. The Building Regulations 2010, Approved Document G, Sanitation, hot water safety and water efciency, Appendix B. Plumbing Engineering Services Design Guide, The Institute of Plumbing (CIPHE) (2002). An assessment of the validity of the loading units method for sizing domestic hot and cold water services, CIPHE/CIBSE/Heriot Watt Uni/SoPHE 2017. CIBSE Guide G, Public health and plumbing engineering, CIBSE 2014 rev. 2017. www.bpma.org.uk/news-article/5996faef4f837/EU-Compliance-for-BoosterSets-is-a-Legal-Requirement accessed 3 September 2019. 22 October 2019 www.cibsejournal.com CIBSE Oct19 pp19-22 CPD 153 Supp v2.indd 22 20/09/2019 13:50
